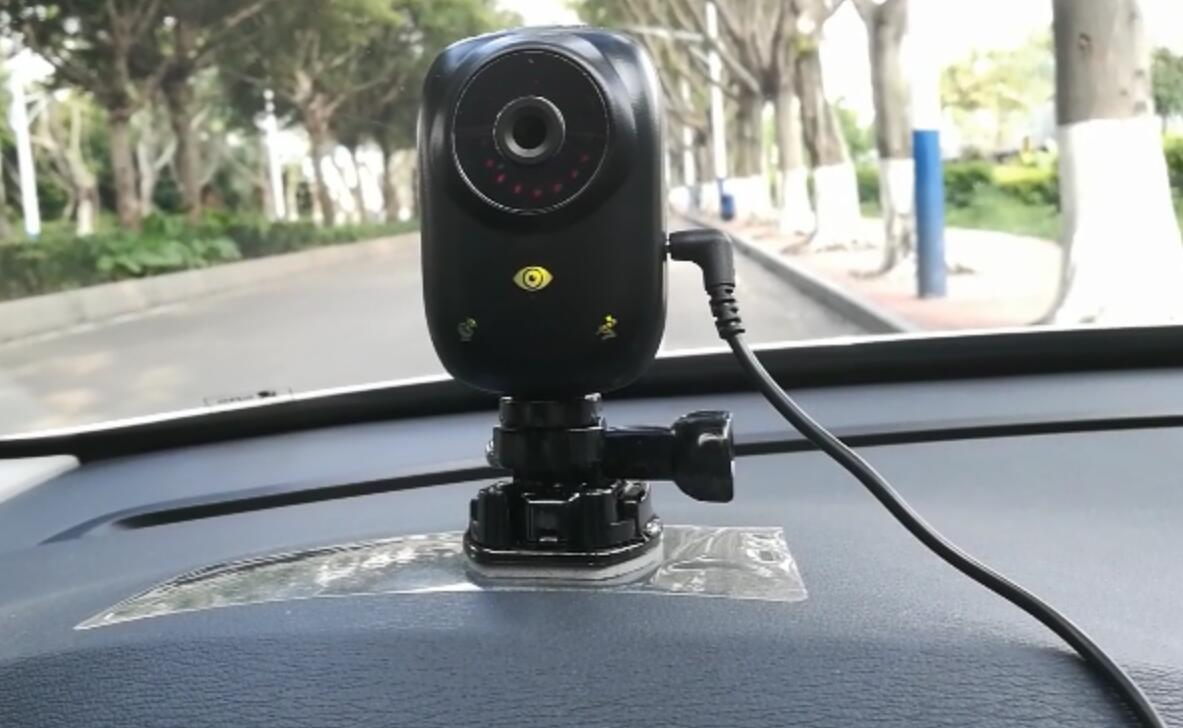

Driver fatigue monitor with signal output 45km/h start-up speed
Description
Driver Fatigue Monitoring System can help monitor and alert driver when drowsiness or distraction is detected, which aims to add driving safety. Working with our Systems will get better effects for effective fleet management!
Detect and alarm driver unsafe behaviors: fatigue detection, distraction detection, phone call detection, smoking detection, no driver detection
Driver identification
Seamless integration with MDVR, realtime alarm and video uploading for abnormal driving behavior
With built-in high definition alarm recording (1280 x 720 resolution, 20 seconds synchronous recording when alarm triggered)
With built-in GPS module, recording actual speed and location
With built-in WIFI module, the device can be easily calibrated and configured via Android APP by connecting the device WIFI
With built-in infrared light, driver status can be effectively detected with low light condition. The driver could be wearing sunglasses and detected too
With built-in 2W loudspeaker, good alarm sound effect
Attention:
Non-authorized person, please do not open or repair the device.
Please do not operate the system when driving to avoid dangerous
Please handle carefully, do not drop or impact with hard objectives
Do not use chemicals or cleaning agents to clean the machine, it will damage the machine surfaces or rust the paint.
keep it away from water or moist place, device will be rusted or shortcut in those area.
Do not rip, bend or squeezed the wiring by heavy object, or it will be hot to fire.
Power input and output
| Input | 9-36V |
| power consumption | 100mA in 12V car, and 60mA in 24V car |
| I/O output | high resistance status under normal status, low voltage output when triggered |
| Working Temprature: | 0-80℃ |
| Working Humility: | 10%-90% |
| Weigh: | 108g |
| Demension: | 4.5*10.2cm |
1. Input: 9-36V, LS803 is suitable for both 12V and 24V vehicle, and have good high voltage protection.
2. very lower power consumption, average current less then 100mA in 12V car, and 60mA in 24V car, similar with leakage from the battery, almost does not consume battery power.
3. I/O output, high resistance status under normal status, low voltage output when triggered.
4. Working Temprature: 0-80℃
5. Working Humility: 10%-90%
6. Weigh:108g
7. Demension: 4.5*10.2cm
